AC EV Chargers

AC Chargers for all your need : Efficient & Reliable Charging Solutions

Discover Panasonic’s advanced AC charging solutions, designed to deliver reliable, efficient, and safe charging for electric vehicles. Whether at home, work, or commercial spaces, our chargers provide the perfect balance of performance and convenience. Equipped with cutting-edge technology, robust design, and seamless cloud integration, Panasonic AC chargers ensure a hassle-free charging experience.

Explore Our AC Chargers

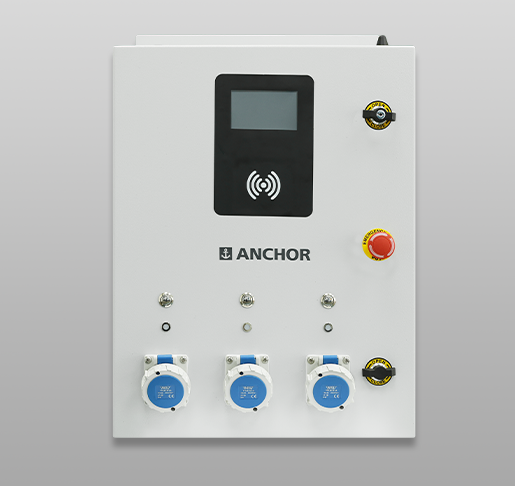

Bharat AC001 - 10kW

Input Voltage (AC) : 415 Vac + 10% or -6%
Input Frequency : 50Hz
Wires : Three Phase, 5 Wire (L1, L2, L3, N & PE)
Output Connector: Bharat AC [IEC-60309]
Number of Outputs : 3
Output Current : 16A Max Per Output
Output Rating : 240 Vac
IP Rating : IP54
Charger & Vehicle : as per BEVC-AC 001 specifications
RFID Specifications : RC 522 RFID Reader ISO/IEC 14443A/MIFARE

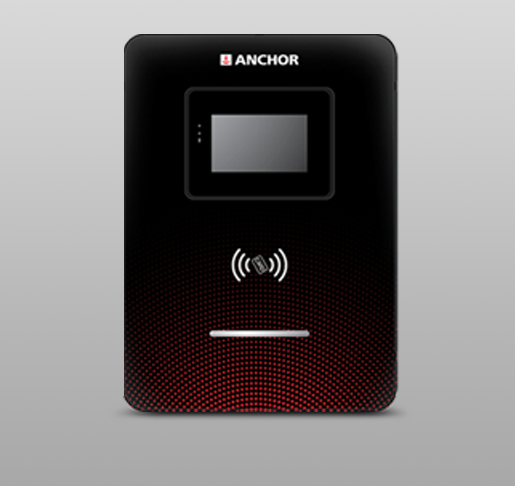

7.4kW

Input Voltage (AC) : 240 Vac + 10% or - 6%
Input Frequency : 50Hz
Wires : Single Phase, 3 Wire (L1, N & PE)
Output Connector : Type 2 AC [IEC 62196-2]
Number of Outputs : 1
Output Current : 32A Max Output
Output Rating : 240 Vac
IP Rating : IP 54
Charger & Vehicle : Type 2 AC as per IS 17017
RFID Specifications : RC 522 RFID Reader ISO/IEC 14443A/MIFARE

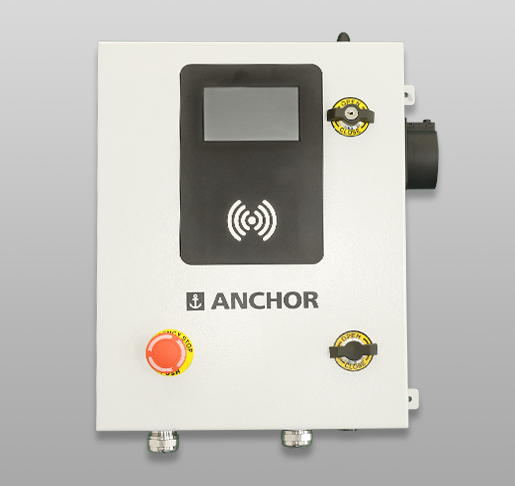

11kW

Input Voltage (AC) : 415 Vac + 10% or -6%
Input Frequency : 50Hz
Wires : Three Phase, 5 Wire (L1, L2, L3, N & PE)
Output Connector : Type 2 AC [IEC 62196-2]
Number of Outputs : 1
Output Current : 16A Max Output
Output Rating: 415 Vac
IP Rating : IP 54
Charger & Vehicle: Type 2 AC as per IS 17017
RFID Specifications: RC 522 RFID Reader ISO/IEC 14443A/MIFARE

22kW

Input Voltage (AC) : 415 Vac + 10% or -6%
Input Frequency : 50Hz
Wires : Three Phase, 5 Wire (L1, L2, L3, N & PE)
Output Connector : Type 2 AC [IEC 62196-2]
Number of Outputs: 1
Output Current : 32A Max Output
Output Rating : 415 Vac
IP Rating – IP 54
Charger & Vehicle : Type 2 AC as per IS 17017
RFID Specifications : RC 522 RFID Reader ISO/IEC 14443A/MIFARE

AC Charging: Reliable and Versatile

Panasonic AC chargers provide alternating current (AC) to your EV, which the onboard charger then converts to direct current (DC) to charge the battery. Equipped with two-way communication for safety and efficiency, they are ideal for corporate parks, residential complexes, and shopping malls. Combining reliability, convenience, and adaptability, Panasonic AC chargers are the perfect solution for diverse charging needs
